Diesel Wood Chipper 6130



Introduction for the mobile diesel engine wood chipper

The diesel engine wood chipper is mainly used for chipping wood, hard wood and tree branches into sawdust, which can be used as a fertilizer, fuel, paper mills and wood factory. Large quantities of wood chip are already being used as a fuel supply for energy and heating, and for industrial purposes, such as wood pellet, charcoal, etc. And the using value can reach to the maximum and the environmental pollution can be reduced.


Application for

* Biomass pellet production line.

* Organic fertilizer: free decay into surface can be formed a good organic fertilizer.

Flower potting soil packing: coverage of bare soil to prevent dust purification air organic fertilizer additive

* Mushroom cultivation base: apply to all kinds of mushroom cultivation recycling.

* Animal feed: freshwater fish or natural organic pollution of plant-eating animal feed.

It can also be used in landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .

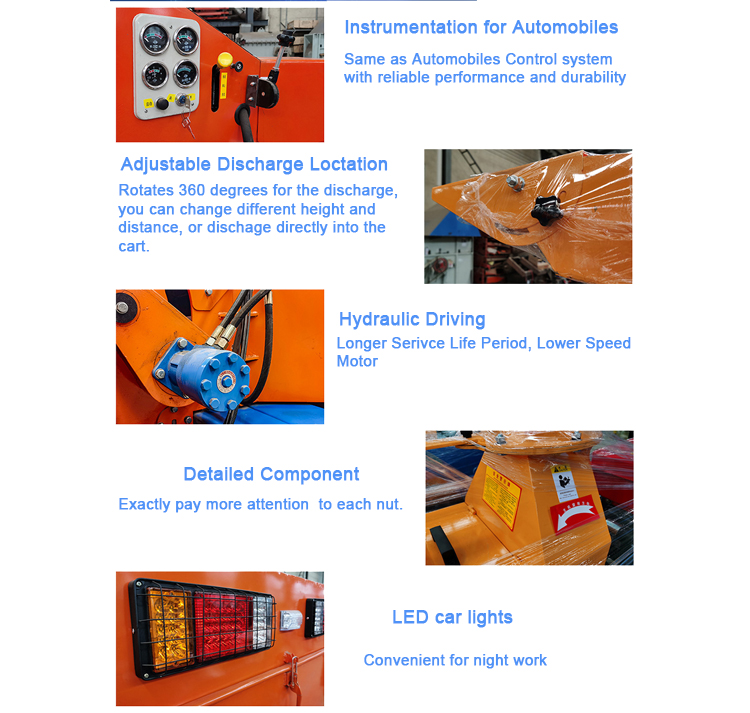

High Lights

Tail lights, feed lighting, foldable hand shake jack, traction height adjustable,with motor cover plate and chain conveyor

The 360 ° quick adjustment device and outlet mouth height adjustment

Accelerator adjustment by Turn off the throttle with an integrated operating handle


Wood Branch Chipper Machine Photos


Technical Data

6130 tree branch crusherDiesel engine
capacity1-3 t/h
size2.3*1.3*1.8m
With power25 / 32 / 55 HP
Diesel Engine
starting modeElectric
Host speed2900r/min
Feed pressure roller dia.280mm
Feed pressure rollerfluid motor
Knife roller dia.300mm
Number of bladesMoving blades 3pcs
fix balde 1pc
Blade length300mm
Battery12V/105aH
Generator power800W
Diesel tank volume20L
Hydraulic tank volume25L
Feed gearEnter-reverse-stop three-gear
manual control
Feed mouth700*500mm
Feed throat300*250mm
Hub sizeA 13-inch aluminum alloy wheel hub
Tire size165/70r13

Accessories and details
